SeeSnake NANOreel Inspection Camera

NANOreel

SeeSnake NANOreel Inspection Camera

NANOreel

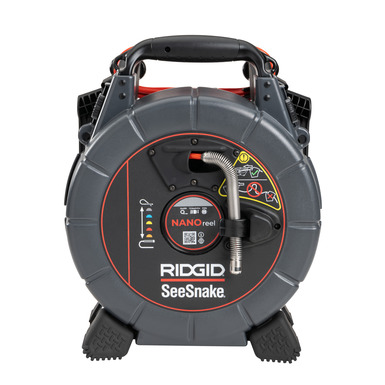

The RIDGID SeeSnake® NANOreel inspection camera opens up new possibilities in drain inspection with the smallest-diameter camera and most flexible push cable of all SeeSnake® systems. This reel is ideal for long-run, small-diameter runs. Applications where only borescopes could reach can now be inspected using the NANOreel inspection camera. Boiler tubes, supply lines, sprinkler systems and a wide array of specialty applications can be inspected using the NANOreel inspection camera.
Show Less
Read More

Features

  • Maneuverability - Small 15mm camera head with ultra flexible push cable navigates tight spaces.
  • Portability - Lightweight and compact carrying case design is easy to carry to jobsites and store in between.
  • Stability - Built-in kickstand can be used upright for tight spaces, at an angle for added leverage or on four feet to accommodate the CSx Via.
  • Durability - Hardened stainless steel camera head & spring assembly is durable and reliable for a long service life.
  • Visibility - Camera heads feature long-lasting high-efficiency LEDs that provide greater views inside pipes.
  • Traceability - Integrated 512Hz sonde allows for easy line tracing and locating.
  • Versatility - Use with any SeeSnake monitor or Wi-Fi Hub.

Specifications

Camera Diameter 15.5 mm
Camera Type Fixed
Resolution 656 x 492 pixels
Line Capacity 1" to 2" (25 mm to 51 mm)
Push Cable Length 82 ft (25 m)
Push Cable Diameter 0.28 in (7.2 mm)
Cable Flexibility Ultra Flex
Push Cable Minimum Bend Radius 1 in (25 mm)
Sonde 512 Hz, Integrated
Weight 12.7 lbs (5.7 kg)
Length 13.3 in (337 mm)
Width 8.8 in (224 mm)
Height 16.2 in (411 mm)
Drum Diameter 12 in (305 mm)

Ordering Information

{{model}}
Catalog Number Model No. Description Weight
lb. kg
70038 NANOreel  SeeSnake® NANOreel Inspection Camera  12 1/10  5,49
  • 71498 - Spare, Slipring Connector
  • 67307 - Assy, Interconnect Cable, Overmolded, 3m (10’)
  • 69758 - Kickstand Accessory
  • 42778 - 30mm and 25mm Pipe Guide Set, 16mm Camera Head, Pkg of 2
77583 NANOreel  SeeSnake® NANOreel Inspection Reel with micro CA-350 Handheld Camera
  • 71498 - Spare, Slipring Connector
  • 67307 - Assy, Interconnect Cable, Overmolded, 3m (10’)
  • 69758 - Kickstand Accessory
  • 42778 - 30mm and 25mm Pipe Guide Set, 16mm Camera Head, Pkg of 2
  • 55903 - CA-350 Handheld Inspection Camera, includes 12V Battery and Charger
  • 67808 - SeeSnake® CA-350 Adapter and Docking Handle
77598 NANOreel  SeeSnake® NANOreel Inspection Reel with micro CA-350x Handheld Camera with Wi-Fi
  • 71498 - Spare, Slipring Connector
  • 67307 - Assy, Interconnect Cable, Overmolded, 3m (10’)
  • 69758 - Kickstand Accessory
  • 42778 - 30mm and 25mm Pipe Guide Set, 16mm Camera Head, Pkg of 2
  • 63888 - CA-350x Handheld Inspection Camera with Wi-Fi, includes 12V Battery and Charger
  • 67808 - SeeSnake® CA-350 Adapter and Docking Handle
Accessories
{{model}}
Catalog Number Description Weight
lb. kg
42778 30mm and 25mm Pipe Guide Set, 16mm Camera Head, Pkg of 2  1/5  0,09
67307 Assy, Interconnect Cable, Overmolded, 3m (10’)  1 1/10  0,50
67808 SeeSnake® CA-350 Adapter and Docking Handle
