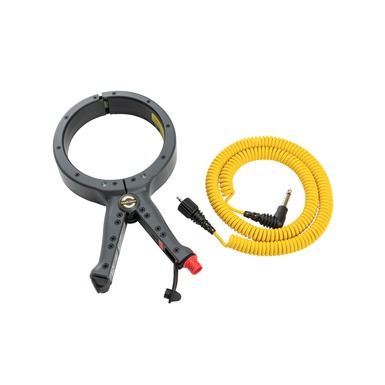

SeekTech Inductive Signal Clamp

SeekTech Inductive Signal Clamp

The RIDGID SeekTech Inductive Clamp allows users to apply a signal to a cable or pipe when direct connection is not possible. Compatible with all RIDGID® transmitters.

Show Less
Read More

Features

  • Induces a signal onto a cable or pipe less than 119 mm (4.7 in) in diameter
  • Compatible with all RIDGID SeekTech line transmitters, including the ST-305, ST-305R, ST-33Q+, and ST-510
  • Additionally compatible with any comparable line transmitter which has a 10 watt or less maximum output power if frequency is under 45 kHz, and a 1 watt maximum if above 45 kHz
  • Can be used with frequencies from 8 kHz to 262 kHz
  • Removable and easy to store coiled cord
  • Ergonomic handle for easy opening and closing
  • Convenient pull tab for opening and closing in tight spaces

Specifications

Weight 0.5 kg (1.1 lb)
Height 264 mm (10.4 in)
Width 148 mm (5.8 in)
Depth 36.8 mm (1.5 in)
Inside Diameter 119 mm (4.7 in)
Cord Length 0.75 m (2.5 ft)
Power Source Line transmitter with 10 watt or less max output power with frequency < 45 kHz, or 1 watt max if > 45 kHz
Frequencies 8 kHz to 262 kHz

Ordering Information

{{model}}
Catalog Number Description Weight (lb.)
72963 SeekTech® Inductive Signal Clamp  Buy Now
